Fiber Splicer: KL-280G

Categories: , Tags: ,
loading

Description

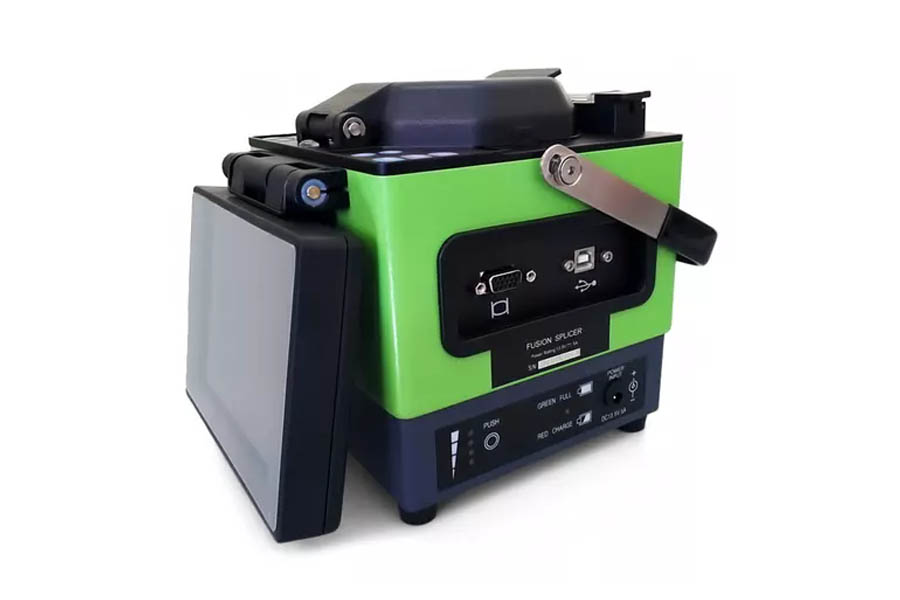

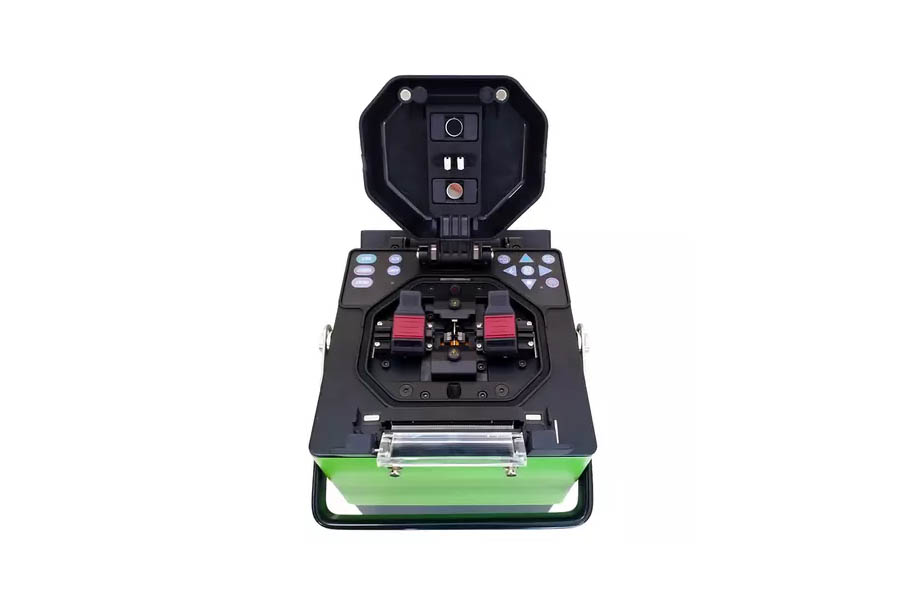

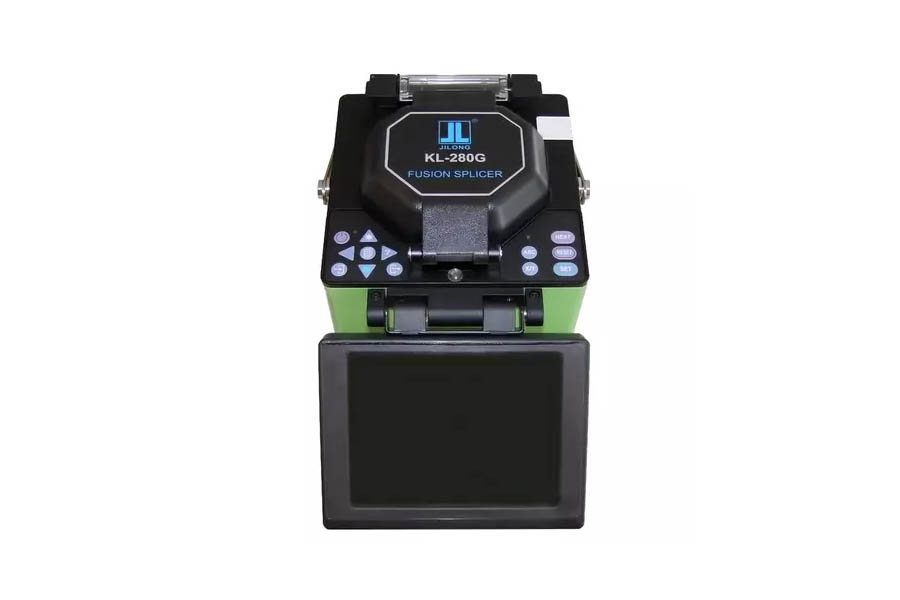

Jilong KL-280G Fusion Splicer is an automatic fusion splicer with core fiber alignment. The device is capable of splicing a fiber in 9 seconds and heating a splice sleeve in 30 seconds. Jilong KL-280G is characterized by an automatic splicing program selection function and automatic quality check.

Features

  • PAS (Profile Alignment System) core fiber alignment method.
  • Clear fiber core displaying.
  • Applicable fibers: Single-mode, Multi-mode, Dispersion-shifted, Non-zero dispersion-shifted.
  • Splicing time: 9 seconds.
  • Heating time: 30 seconds.
  • Single view & simultaneous view of X or Y axes.
  • Auto splicing program selection.
  • Auto quality check.
  • 5.7-inch color LCD monitor with clear digital image displaying.
  • Compact and lightweight.
  • Easy to use operation menu.

Specifications

Jilong Fusion Splicers Comparative Specifications

 KL-195KL-280KL-280GKL-300KL-300TKL-350E
Splicing
Applicable fibersSM (ITU-T G.652),  MM (ITU-T G.651),  DS (ITU-T G.653),  NZDS (ITU-T G.655)
Fiber cleaved length8 ~ 16 mm (coating diameter: 250 µm)
Fiber diameterCladding diameter: 80 ~ 150 µm
Coating diameter: 100 ~ 1000 μm
Fiber countSingle
Auto focusingUnavailableAvailableUnavailable
Fiber alignment methodcladding alignment with fixed V-groovecore alignmentcore alignment, cladding alignment, manual alignment
Average splice loss0.02 dB (SM),  0.01 dB (MM),  0.04 dB (DS),  0.04 dB (NZDS)
Splicing timetypical 9 sec (standard SM fiber)
Splicing programs53 templates
40 user adjustable		12 templates
188 user adjustable		53 templates
40 user adjustable
Return loss> 60 dB
Internal memory4000 results, 20 parameters per result5000 results, 3 parameters per result4000 results, 20 parameters per result
Fiber image magnification125X (X and Y view)400X (X or Y view)
200X (X and Y view)		300X (X or Y view)
150X (X and Y view)
Heating
Heating timetypical 30 sec
Heating programs9 templates
24 user adjustable		adjustable heating time9 templates
24 user adjustable
Heating temperature adjustmentAvailableUnavailableAvailable
Applicable sleeves 60 mm, 40 mm and a series of micro sleeves
General
Tension test2 N
Electrode life2500 splicing cycles
Battery capacitytypical 160 cycles (splicing and heating)typical 130 cycles (splicing and heating)typical 160 cycles (splicing and heating)
Display5.7" TFT color monitor5" color LCD monitor.7" color LCD monitor5.7" TFT color monitor
InterfaceUSB 1.1 and VGARS232USB 1.1 and VGA
Operating conditions0 ~ 5000 m above sea level;  0 ~ 95% RH; –10 ~ +50°C,  respectively;  max. wind velocity of 15 m/s
Power supplyAC adapter (AC 100-240 V);
Li battery (8000 mAh)		Adaptador AC (AC 100-240 V);
Li battery (7800 mAh)		Adaptador AC (AC 100-240 V);
Li battery (8000 mAh)
Dimensions (L×W×H)150 × 150 × 150 mm150 × 150 × 160 mm150 × 150 × 150 mm
Weight3.1 kg (including battery)3.52 kg (including battery)2.7 kg (excluding battery)
3.3 kg (including battery)		2.7 kg (excluding battery)
3.2 kg (including battery)
 KL-195KL-280KL-280GKL-300KL-300TKL-350E

Package Contents

  • Jilong KL-280G Fusion Splicer — 1 pc.
  • High Precision Fiber Cleaver — 1 pc.
  • CFS-2 fiber stripper — 1 pc.
  • Internal rechargeable Li battery — 1 pc.
  • AC power cord — 1 pc.
  • Spare electrodes — 2 pcs.
  • Cooling tray — 1 pc.
  • Cleaning tools — 1 pc.
  • Operating manual — 1 pc.
  • Carrying case with a belt — 1 pc.
